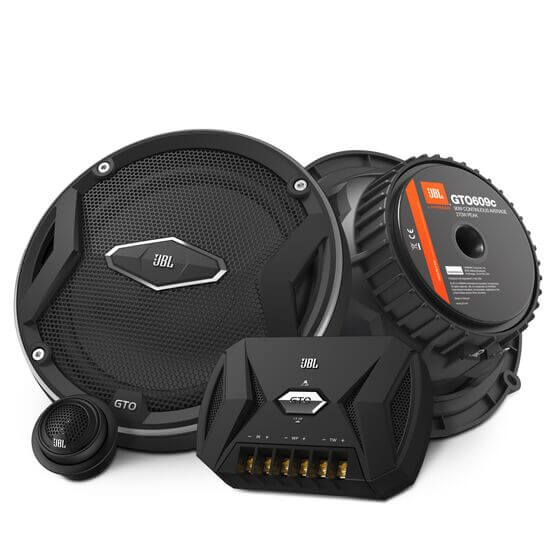

JBL GTO609C Component Speaker

1. JBL GTO609C component speaker are 6-1/2″ High-fidelity speakers system.
2. Peak Power Output 270 W
3. JBL GTO609C built with fiberglass reinforced-plastic (FRP) frames provides perfect control which provide accurate sound in your car.
4. High sensitivity.
5. Edge-driven, soft-dome twitter diaphragms.
6. 12dB Octave passive crossovers provides protection for the tweeters and contoured filtering at crossover point between woofer and tweeter.
7. Three ohm voice coil.
8. JBL GTO609C has vented magnet assemblies.
9. Frequency response up to 21 kHz.
10. Speaker grilles and tweeter mounting hardware.

1. Brand Name: JBL
2. Model: GTO609C
3. Type: 2-Way
4. Size: 6-1/2″
5. Nominal Impedance: 3 ohm
6. Power Handling(RMS): 5W-200W
7. Power Handling(Peak): 270W
8. Sensitivity: (2.83V/1m) 92 dB
9. Frequency Response: 67 Hz-21 kHz
10. Mounting Depth Tweeter (in): 13/16
11. External Diameter (in): 6-7/8
12. Mounting Cutout Diameter Tweeter (in): 1-5/8
13. Mounting Depth (in): 2-1/16
14. Mounting Cutout Diameter Tweeter (mm): 41
15. External Diameter (mm): 175
16. Mounting Depth (mm): 52
17. Mounting Depth Tweeter (mm): 20
18. Mounting Cutout Diameter (in): 5
19. Mounting Cutout Diameter (mm): 127

1. 1 pair of component speakers
2. Speaker grilles 1 Pair
3. 1 pair of tweeters
4. Tweeter surface mount cups
5. Tweeter angle mount cups
6. Mounting screws for Tweeters
7. Owner’s Manual
8. Warranty Card
